Conveying Equipment
In warehouse projects, we rarely evaluate a conveyor by its maximum speed alone.
The real test is what happens when several shuttle robots or stacker cranes release loads at the same time. These machines may share only several routes, making the conveyor the narrowest—and often busiest—part of the material flow.
For this reason, conveying capacity should be calculated from combined peak demand rather than average volume. Availability and stable operation are just as important as rated speed.
A well-planned conveying system does more than connect equipment. It protects the throughput already created by the AS/RS and keeps the warehouse moving during real operating peaks.
Existing Product Display Section
-
![High-Speed Tote Lifter]()
High-Speed Tote LifterDELIECN High-Speed Tote Lifter is compatible with totes of various sizes, adapting to different operating scenarios. With seamless integration into WMS/WCS systems, it enables efficient inbound and outbound handling of large volumes of...view more -
![Forklift-Type Vertical Lifter]()
Forklift-Type Vertical LifterUsing DELIECN Forklift-Type Lifter eliminates the need to install a chain conveyor, reducing costs. The telescopic fork can extend to pick and place goods. The control program is simple, with a low failure rate.view more -
![Roller Conveyor]()
Roller ConveyorPallet Roller Conveyor Ideal For Pallet Automation Warehouseview more
DELIECN Pallet Roller Conveyor is an in-house engineered solution featuring a robust yet low-maintenance structure and an advanced, adjustable drive system. Conveyor... -
![Chain Conveyor]()
Chain ConveyorDELIECN Chain Conveyor: High-Efficiency, Reliable Transport For Automated Warehousesview more
DELIECN Chain Conveyor uses a motor driven chain as its core transmission mechanism. It has a maximum load capacity of 3000 kilograms and a... -
![90 Degree Transfer Machine]()
90 Degree Transfer MachineDELIECN 90 Degree Transfer Machine: Reliable For Automated Warehousingview more
At the interface between automated warehousing and production, 90 Degree Transfer Machine with a customizable lift stroke adapts to roller conveyors and chain... -
![Landing & Lifting Machine]()
Landing & Lifting MachineDELIECN Pallet Ground Landing & Lifting Machineview more
DELIECN Pallet Ground Landing & Lifting Machine is designed for efficient vertical transfer of pallets between conveyor systems and ground-level equipment such as AGVs, AMRs, or... -
![Palletizer/Depalletizer]()
Palletizer/DepalletizerHigh-speed Automated Pallet Stacking and Unstackingview more
DELIECN Palletizer and Depalletizer uses a high strength carbon steel structure and multi motor coordinated drive as its core technologies. Customizable pallet sizes... -
![Tote Roller Conveyor]()
Tote Roller ConveyorTote Roller Conveyor For Precise And Continuous Tote Conveyingview more
DELIECN Tote Roller Conveyor features a modular design for quick installation and low implementation cost. Powered by an electric roller drive, it ensures stable,... -
![Tote Transfer Machine]()
Tote Transfer MachineTote Transfer Machine: Efficient Transfer For Smart Warehousingview more
DELIECN Tote Transfer Machine is a core module within the tote conveying equipment, supports a 200 kg load capacity and offers both electric (20 mm) and pneumatic... -
![Tote Belt Conveyor]()
Tote Belt ConveyorTote Belt Conveyor: Quiet, Flexible, And Space-Saving For Automated Warehousesview more
DELIECN Tote Belt Conveyor features a modular, low-noise design that supports flexible integration with straight and curve belt conveyors and...
How Can You Quickly Determine Which Conveying Equipment to Consider First?
If you are not sure which product to look at, start with three questions:
Are you moving pallets or totes?
Does the load move horizontally or vertically?
Does it need to change direction or elevation along the route?
|
Your Logistics Scenario |
Priority Equipment |
What It Mainly Solves |
DELIECN Core Technical Features |
|
Pallets need to move between different floors or rack levels |
Pallet Lifter |
Vertical pallet lifting and level changing |
Load capacity up to 2,000 kg, lifting speed up to 60 m/min, and ±2 mm positioning accuracy; can work with shuttle robots |
|
Totes need high-speed transfer between levels |
High-Speed Tote Lifter |
Level changing for totes and tote shuttle robots |
Different configurations support 100–400 kg loads, lifting speeds up to 5 m/s, and ±2 mm positioning accuracy |
|
Pallets need continuous transport along a fixed route |
Roller Conveyor / Chain Conveyor |
Horizontal pallet conveying and equipment interfacing |
Roller Conveyors support continuous transport of standard and customized pallets; Chain Conveyors support loads up to 3,000 kg |
|
Pallets need a 90° direction change or short-stroke elevation adjustment |
90 Degree Transfer Machine / Landing & Lifting Machine |
Direction change, transfer, and short-stroke height adjustment |
90 Degree Transfer Machine supports loads up to 2,000 kg; Landing & Lifting Machine can interface conveyors with AMRs, AGVs, or floor-level pallet handling equipment |
|
Totes need continuous horizontal conveying |
Tote Roller Conveyor |
Continuous tote transfer between AS/RS, picking, packing, and other workstations |
Tote Roller Conveyor supports loads up to 200 kg and speeds up to 30 m/min; Tote Belt Conveyor supports horizontal and inclined conveying |
|
Totes need to transfer or divert between different conveyor routes |
Tote Transfer Machine |
Tote transfer and diversion between conveyor lines |
Can be combined with roller conveyors, belt conveyors, and tote storage equipment to create continuous tote flow |
Not Sure Which Equipment to Start With?
Prepare the load dimensions, weight, origin and destination points, conveying elevation, and peak hourly throughput. In most cases, this is enough to narrow down the appropriate equipment type.
How Is a Complete Material Flow Connected?
The value of conveying equipment is often not in one individual machine, but in making sure the upstream equipment can discharge the load and the downstream equipment can receive it.
A Typical Pallet Flow May Look Like This
Production Line / Receiving
→ Roller / Chain Conveyor
→ 90° Transfer
→ Pallet Lifter
→ Stacker Crane / Pallet Shuttle AS/RS
If the pallet only needs to travel straight, a conveyor handles the transfer. If it needs to change direction, a transfer machine is added. If the elevation changes, a Pallet Lifter continues the flow.
A Typical Tote Flow May Look Like This
Tote Shuttle / Miniload
→ Tote Lifter
→ Tote Conveyor
→ Goods-to-Person Station
A load leaving the automated storage system does not mean the task is finished.
The task is complete only when the load passes smoothly through every interface and reaches the next process that needs it.
Industry Applications
This section serves mainly as a gateway to the corresponding industry pages rather than explaining full solutions.
Food & Beverage
Continuous transfer of packaging materials, raw materials, and finished-product pallets between production lines, warehouses, and shipping areas.
View Industry →
Pharmaceutical
Transfer of totes, packaging materials, and pallets between storage areas, production areas, and picking stations.
View Industry →
Chemical
Fixed-route conveying of heavy pallets, raw materials, and finished products, with equipment configurations further adapted to actual loads and operating conditions.
View Industry →
E-Commerce
Continuous movement of multi-SKU totes between AS/RS, picking, packing, and sorting areas.
View Industry →

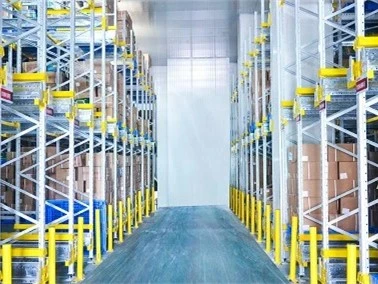

Cold Chain
Transfer of pallets and totes in low-temperature warehouses. Equipment configuration should be confirmed according to the actual operating temperature.
View Industry →
Precision Manufacturing
Transfer of components, WIP, and line-side materials between automated storage and different production stations.
Battery Material
Continuous pallet transfer of raw materials, WIP, and finished products between production lines and automated high-bay warehouses.
View Industry →
More Industry Applications
Explore more DELIECN conveying and automation applications across manufacturing, warehousing, and distribution.
Explore More →FAQ | Frequently Asked Questions About Warehouse Racking
Q: 1. Both Roller Conveyors and Chain Conveyors can move pallets. How do I choose?
A: Start with the pallet bottom structure and load.
A Roller Conveyor supports the pallet on rollers and is more suitable for pallets that can sit stably on roller surfaces during continuous conveying.
A Chain Conveyor carries the pallet directly on chains and is more suitable for heavy loads or pallets that require specific support positions. DELIECN Chain Conveyors support loads up to 3,000 kg.
Q: 2. What is the difference between a Pallet Lifter and a Landing & Lifting Machine?
A: Both involve elevation changes, but they solve different problems.
A Pallet Lifter handles vertical transfer over a larger height range, such as between different rack levels or floors.
A Landing & Lifting Machine works more like a short-stroke elevation interface. It is mainly used to connect conveyors with floor-level AMRs, AGVs, or pallet handling equipment.
Q: 3. How fast should a conveyor line actually run?
A: Do not start with the maximum conveyor speed.
The first questions should be:
How many pallets or totes must pass per hour at peak time? How long does each transfer take? How much can the lifter handle? Can the downstream workstation receive the loads fast enough?
If the real bottleneck is a lifter or a 90° transfer point, increasing the speed of the straight conveyor will not improve overall throughput.
Q: 4. Can non-standard pallets or totes be conveyed?
A: They need to be evaluated based on dimensions, weight, bottom structure, and support points.
The width, length, and height of DELIECN pallet conveying equipment can be adapted to project requirements. Roller Conveyors and Chain Conveyors can also be configured for different pallet sizes, while tote conveying equipment can handle different tote and carton dimensions.
For projects with large variations in load-carrier specifications, sometimes adjusting the equipment is enough. In other cases, standardizing the load carrier may be the better solution.
